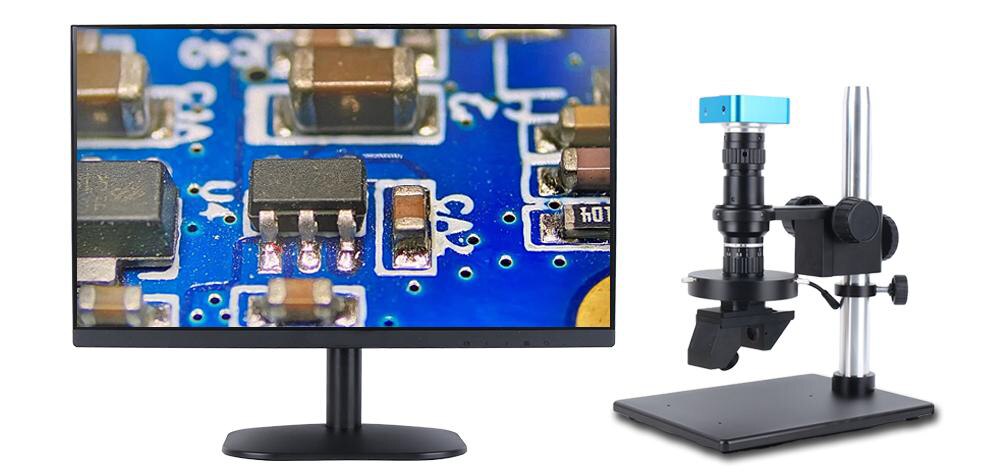

3D VIDEO MICROSCOPE

3D VIDEO MICROSCOPE

Application: Microelectronics, Deep Hole Wale, PCB Inspection, Precision Hardware Precision Electronics Morphology, Lab, Mobile, PCB Board & Visual Inspection, Textile, Maintenance, Etc.

Feature

1. 3D video microscope body based on infinity optical system.

2. Manual switch 2D and 3D observation, 360 °rotation, 45 °objective viewing angle.

3. Working distance always maintain 86mm when you switch 2D and 3D observation,

No need to adjust the focus.

4. The center position of 2D and 3D is same, zoom to any magnification have a best

image without adjustable.

5. CCD adaptor with fine-tuning device, it can match any CCD camera, When you

Finetuning, camera and lens no need to rotate.

6. At Minimum magnification, the field of view is full image without dark edge image,

High resolution, large depth of view.

7. Widely used in microelectronics, precision electronics, precision hardware,

deep hole wall, life science, morphology, forensic identification.

Optical Parameter

2D/3D View

2D and 3D Manual Free Switch. Working Distance Always Remain Same. The Center Position Remain Same. 360 °Rotation, 45 °Objective Viewing Angle.

Lens Specification

Optical Magnification: 0.6-5.0X

High Resolution: 0.6-5.0X Zoom Lens 0.6-5.0X zoom optical with 0.5XCCD

(0.3X CCD, 0.5X CCD, 1X CCD Optional)

Total Magnification: 11-95X base of 12.5"monitor

Working Distance: 86mm

Ratio: 1:8.3

Field of View: 24*13.5-2.88*1.62mm

Lens Mount: Standard C mount

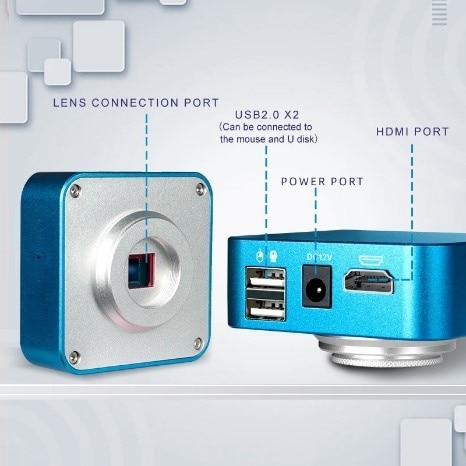

Camera Specification

Image Sensor: 1/2” SONY CMOS

Max Magnification: 1920 x 1080

Pixel Size: 3.75μm x 3.75μm

White Balance: Manual and auto

Brightness Control: Manual and auto

Record Format: Snapshot, Picture Format JPG. Resolution 1920x1080.

Record Route: U disk HDR customized function. Crosshair function

Image Output Interface: HDMI Type

Light Source Parameter

Light Control: 4 zones control. Brightness adjusts

Light Colour: White Quantity of LED: 208PCS LED Intensity: 15000 Lux

Wavelength: 455-457.5nm Output Voltage: 12V Output Power: 8-10W

Working Distance: 35-110mm Material: Aluminium Alloy

Diameter: Inner diameter 40mm, outer diameter 106mm, height 19mm

Stand: Base Size: 330*300mm Height:328mm Scope Holder: 50mm

Supplied Product: 1. Stand Base 2. 2D/3D Rotation View 3. 4 Zones control LED Ring Light 4. Zoom Body 5. CCD Fine Focus Tube 6. HDMI camera 7. Stand Post 8. Focusing Holder

Without Monitor – Display your Scope

ORIGIN: GABY INSTRUMENTS
