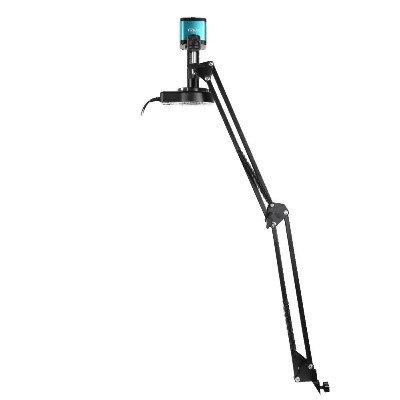

1080P HD-MI USB Industrial Camera 150x Lens Fold Bracket Remote 4K Electronic Digital Microscope for Soldering Microscope

1080P HD-MI USB Industrial Camera 150x Lens Fold Bracket Remote 4K Electronic Digital Microscope for Soldering Microscope

Specification:

48MP Industrial Camera Features:

◆ 48 million pixel imported Panasonic CMOS image sensor;

◆ Using 1/2.33 inch image sensor, Angle of view is wider than 1/3 inch; HD-MI 1080P 60 frame image output;

◆ USB2.0 driver free output 1080P 30 frame image output; 4K video recording;

◆ 48 million photos, JPG format, photo size 4608x3456; One-click freezing/thawing function;

◆ 48 megapixel photography and 1080P video recording; Electronic zoom function; Support manual/automatic exposure, exposure

compensation value adjustment; Support manual/automatic white balance, red, green, blue adjustable;

◆ Provide 8 line drawing functions, line color, thickness, position adjustable; Display/close center cross; Support TF card

storage, up to 64GB; Support remote control operation, take photos without jitter image clearer;

Image resolution: 60F/S

White Balance: Auto

Light: Auto

Negative: Support

Morror: Left/right,Up/Down

Freeze: Support

OSD: English

56 LED Adjustable Compact Microscope Ring Light:

Provides intense and focused shadow-free illumination

Lighting direction changeable

Variable intensity control

Intense and focused shadow-free illumination 100,000 hours of life

Power input: 100-240V, 50-60HZ, auto switching

Inside diameter of the ring light: 1.0“ (27mm)

Overall outside diameter: 1.77” (45mm)

1X-150X Zoom C-mount Lens：

Working distance: 50mm-1000mm

zoom ratios: 1: 15

Magnification Power by 0.15- 2X (about 1 - 150X on the display)

view field of Max multiple: 4.2mm*2.4mm

view field of Min multiple: 130mm*70mm

Size: 30mm(diameter) * 99mm(length)

Collapsible support Feature：

Multi-directional folding optional installation, multi-purpose.

Size: 340 mm * 320 mm

Maximum bottom mounting size: 50mm

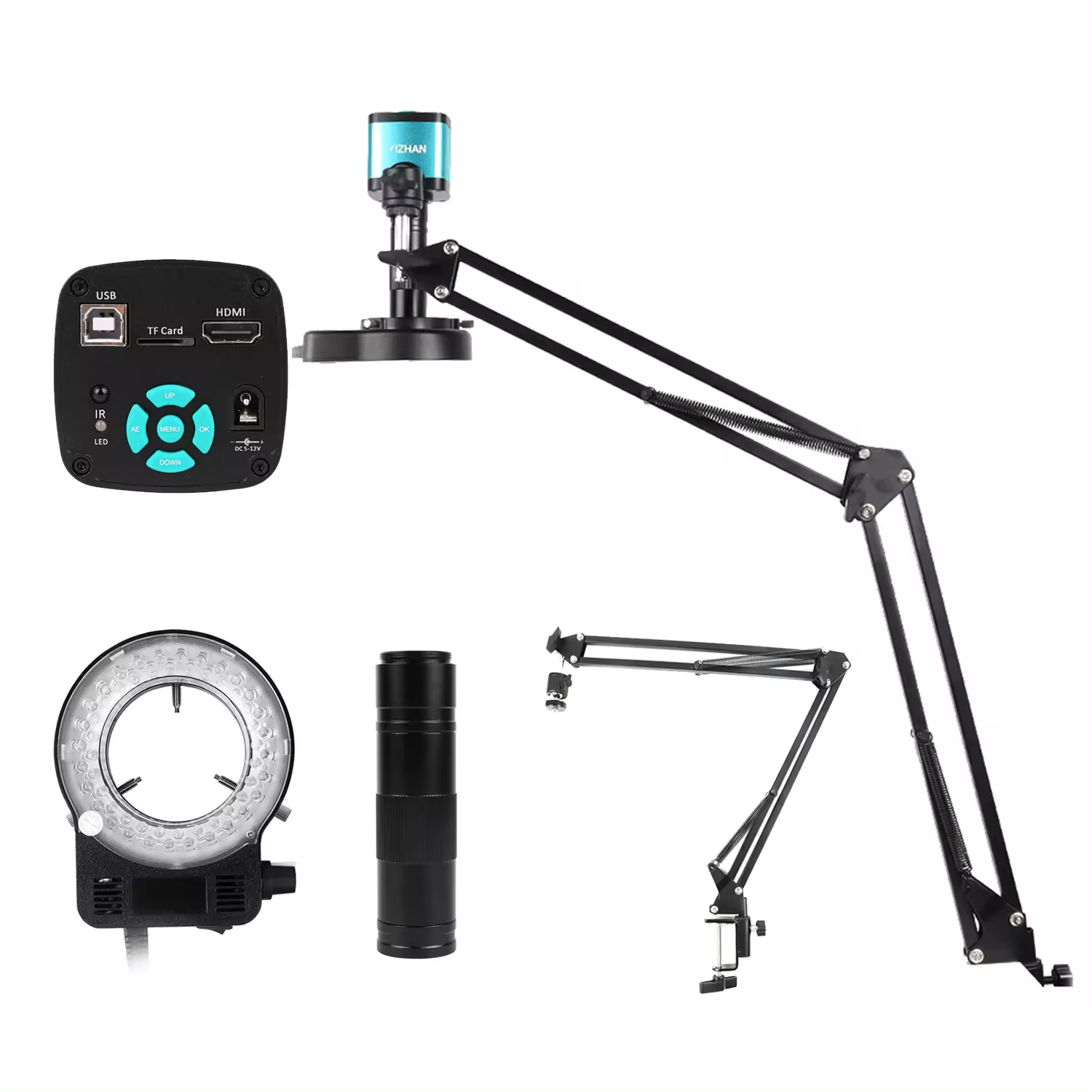

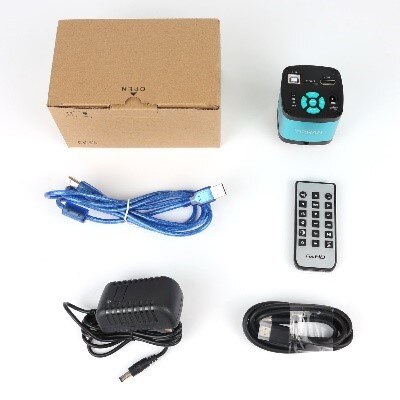

Complete set Packing include:

1 x Camera

1 x power supply

1 x C-mount Lens

1 x Camera metal Stand holder

1 x 56 LED Ring Light

ORIGIN: GABY INSTRUMENTS
